BRIDAFIX CLAMP
Application: Practical and easy support for cables & tubes. Installation by hand with its pressure plug. Possibility to fix also with gas nailer.
Features: High closing capacity & safety . 2 dimensions: Resistent to temperature from -20°C to + 70°C. Halogen free & UV stabilized Material (Resistent to UV).
Raw Material:
• Polyamide 6.6 (Gray & black Color)
• Comply with ELV 2000/53/EC
• Comply with RoHS 2002/95/EC
•Comply with 2003/11/EC
Properties:
• Test to incandescent wire (IEC 695-2-1/2): 850°C
• Flamability grade: (UL94): V2
Technical Data Sheet
FT21170.pdf
PRODUCT REFERENCES
| Code | Description | Ref. | Container type |  |
 |
 |
 |
 |
|
 |
021170 | BRIDAFIX 16-32 mm. GREY | 16-32 G. | BOLSA | 100 | 1,200 | 54.00€ | 54.00€ | |
|
021171 | BRIDAFIX 40-63 mm. GREY | 40-63 G. | BOLSA | 100 | 600 | 99.00€ | 99.00€ | |
|
021175 | BRIDAFIX 16-32 mm. BLACK | 16-32 N. | BOLSA | 100 | 1,200 | 54.00€ | 54.00€ | |
|
021176 | BRIDAFIX 40-63 mm. BLACK | 40-63 N. | BOLSA | 100 | 600 | 99.00€ | 99.00€ | |
 |

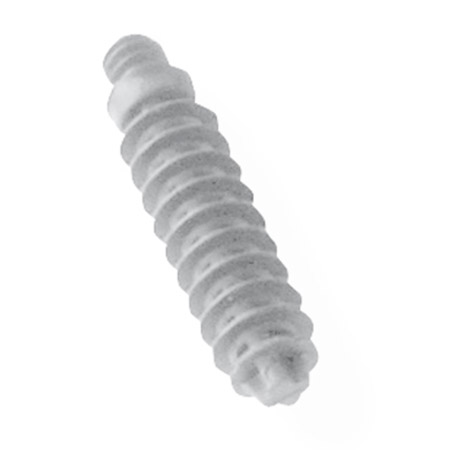

021169 | BRIDAFIX PLUG 8mm GREY | T BRIDAFIX | BOLSA | 100 | 5,000 | 23.00€ | 23.00€ |
